Wheelchair Lift Basic Introduction:

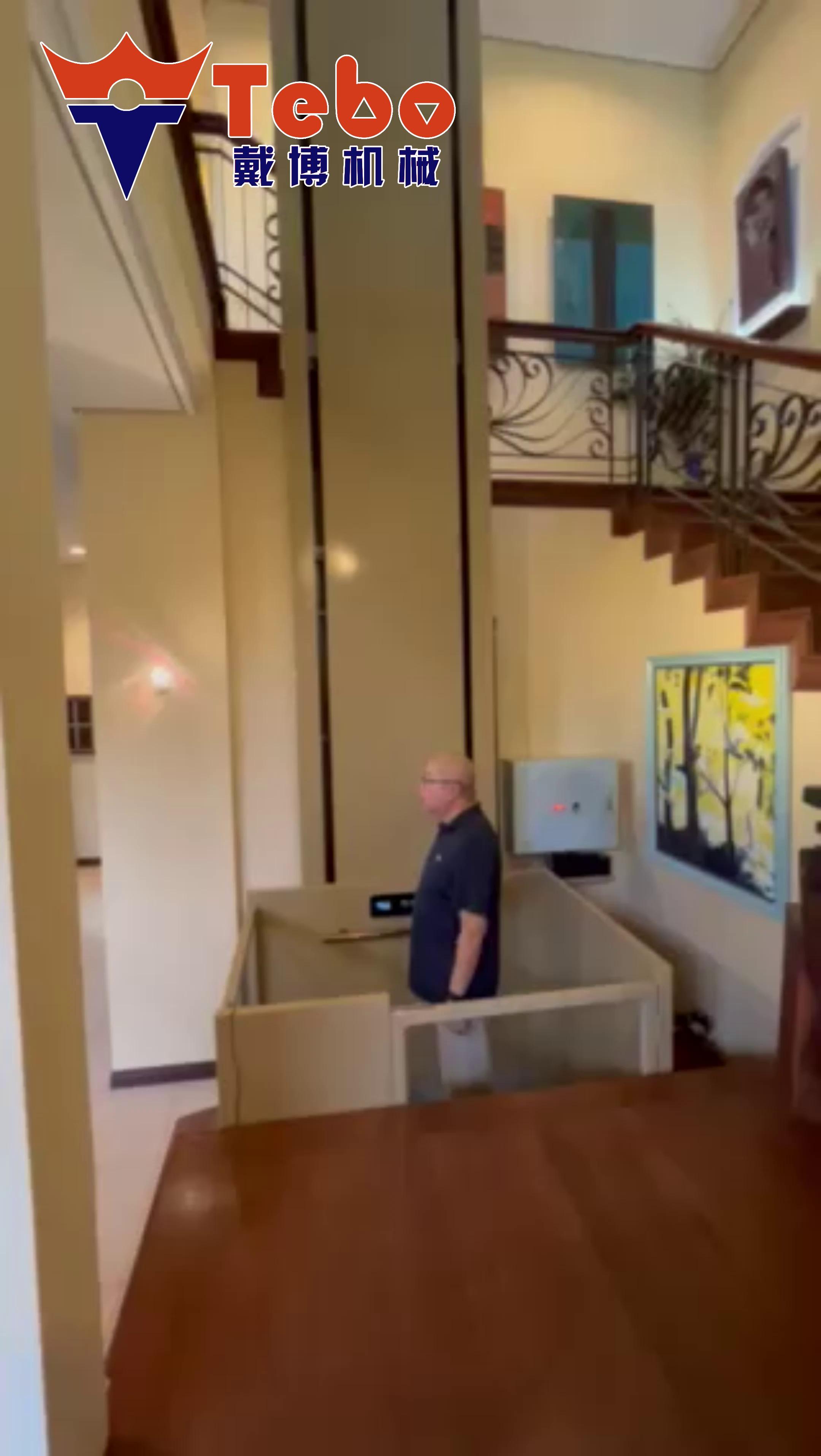

As we all know, hydraulic wheelchair lifts are primarily designed and installed for disabled individuals or elderly people who find it challenging to ascend stairs due to leg pain or other medical conditions.

The wheelchair lift, featuring a sleek white color, utilizes aluminum alloy as its basic structural material and exterior finish. This material provides a lightweight design that resists rust, even when installed outdoors. Moreover, due to the aluminum alloy, the lift's self-weight is significantly reduced, making it easier to move and transport when workers are shifting it from the warehouse to the worksite.



The basic details of aluminum alloy material wheelchair lift platforms are as follows:



Model

Lifting   height

Input power

Stops

Capacity

Platform   size(mm)

Installation   area size request(mm)

TB0.3-2

≤3.5m

Customized

2

300KG

W1200xD1200

W1360xD1540

TB0.3-3

≤7.0m

Customized

3

301KG

W1200xD1200

W1360xD1540

TB0.3-4

≤10.5m

Customized

4

302KG

W1200xD1200

W1360xD1540

TB0.3-5

≤14.0m

Customized

5

303KG

W1200xD1200

W1360xD1540



The wheelchair lifts are mainly include 5 parts of main systems:

1. Mechanical system: Hydraulic wheelchair lifts' mechanical system mainly include guide rails, supporting beams, platform structures, safety handrails, platform doors and landing doors, etc;

2. Hydraulic system: Hydraulic wheelchair lifts' hydrualic system are mainly including DC/AC motor of pump station, pump, pump tank, hydrualic valve block controlling system, oil hose, piston/cylinder, etc;

3. Electric system: The electric system are mainly include calling box, controlling button, the main controlling box, electric wires, limit switches, safety sensor switches etc.

4. Finishes system: The finishes system are the protecting system or decorating system, which are mainly including: landing doors(automatic doors or manual doors or semi-automatic doors), shaft enclousre(shaft structure with glass or only shaft structure without glass), platform cabin system.

5. Safety system:

A. Platform Emergency Stop Control,

B. Platform Bottom Safety Sensor Device,

C. Platform Safety Gear (Anti-Freefall Mechanism),

D. Hydraulic Pump Pressure Overload Protection Design (In the event of abnormal pressure overload, the oil will automatically flow back from the oil hose to the oil tank),

E. Weight Overload System (When the lift platform exceeds its capacity, the lift will halt and trigger an alarm),

F. Platform Door/Landing Door Safety Sensors - As the doors serve as the primary entry point for users utilizing the wheelchair lift, the sensor switches for both landing doors and platform doors are crucial and indispensable.

Tebo Lift factory's advantage:

1. We possess a highly skilled team dedicated to designing, producing, and selling/exporting.

2. With a rich 12-year history in manufacturing hydraulic wheelchair lifts, hydraulic home lifts, and cargo lifts, Tebo has amassed extensive and well-developed production experience.

3. Tebo holds three invention patents and five exclusive design patents, all pertaining to safety structures within the domain of home elevators.

4. Tebo's team boasts over ten years of export experience, encompassing proficient document processing, expert packaging, seamless after-sales team collaboration, and rigorous quality control.
