Home lift with shaft enclosure Aluminum frame with glass

Application and chief introduction

Hydraulic home elevator is a vertical transportation equipment driven by hydraulic power, through pump station to operate. The pump station pushes hydraulic oil into cylinder, raising the cylinder to lift the cabin. To descend, a valve releases hydraulic oil back into the tank to achieve the elevator descent. This mechanism ensures smooth, quiet, and energy-efficient vertical movement.

Hydraulic home elevator is ideal for low-rise homes (2–6 floors), suit residences prioritizing quiet, space-efficient mobility. It is safe to transport wheelchairs or individuals with limited mobility. Their compact build fits retrofitted or narrow spaces without machine room.

Hydraulic home elevator mainly suitable for villa,residential area, shop, hospital, commercial places, restaurant, hotel, small office building, personal house and school etc.

Basic feature and advantage

Low maintenance cost

The maintenance cost of hydraulic elevators is relatively low because their mechanical structure is relatively simple and regular maintenance and replacement of vulnerable parts and hydraulic oil.

Safety assurance

The hydraulic elevator has multiple safety systems to guarantee the user’s safety when the elevator goes up and down.

Space and energy saving

Installation without pit, no need to damage the structure of the house, it won't occupy too much space.

Customized household power supply, energy saving and worry-free, and low power consumption, not exceeding 4kw.

Easy installation

Hydraulic elevators are much simpler to install than other elevators because they do not require a machine room, only need load-bearing walls. And Low requirements for civil engineering structures, it can be installed without a pit.

Low noise

We adopt low noisy pump station, It's less than 60 decibels. If installed indoor, it won’t disturb user’s rest.

Production details explanation

Lift structure

Hydraulic home elevators feature a robust steel framework, combining high-strength vertical columns, horizontal beams, and reinforced platforms. This design ensures precise load distribution, corrosion resistance through spray painting process, and space-efficient installation while maintaining structural integrity and safety compliance.

Hydraulic system

Hydraulic systems in home elevators utilize a pump station and cylinder to lift/lower cabins via pressurized oil, ensuring smooth movement, energy efficiency, safety valves, and quiet operation with minimal maintenance.

Electric system

Tebo hydraulic home elevators utilize a microcomputer-controlled electric system, ensuring ultra-smooth vertical movement with precision stability. All control, signal, and power cables feature industrial-grade plug-and-play connectors for rapid, error-proof installation. This modular design reduces wiring complexity, accelerates setup, and enhances durability, meeting stringent lEC safety standards for industrial automation.

Finishes parts

Shaft enclosure:

Effectively isolating external dust and noise (operating noise ≤ 55 decibels), suitable for modern residential style.Closed shafts can reduce airflow interference, maintain indoor temperature stability, and prevent foreign objects from entering the guide rail area, reducing the risk of mechanical failure.

Modern aesthetic design: Aluminum frame with glass well, simple and transparent appearance, suitable for high-end scenes such as villas and duplex residences, enhancing the visual extension of the space.

Landing door:

1. Manual swing door: single leaf manual swing door, typically 700-900mm wide, supporting wheelchair and furniture handling needs.

2. Automatic swing door: it can achieve contactless door opening and closing through buttons or sensing devices, especially suitable for users who hold objects with both hands or have limited mobility (such as wheelchair users).

3. Automatic swing door center opening: The central door opening design reduces lateral space occupation, suitable for narrow entrances or symmetrical layout scenarios.

Cabin material:

We adopt the etched-pattern stainless steel cabin in hydraulic home elevator, it combines artistic design with durability, offering scratch-resistant surfaces and corrosion resistance for long-lasting elegance.

1. Aluminum frame with tempered glass:The aluminum frame with tempered glass cabin ensures a lightweight yet durable structure, combining modern aesthetics with corrosion-resistant reliability. Glass elements maximize natural light and spatial transparency, while the aluminum frame enhances energy efficiency and complements minimalist home designs.

2. Stainless steel with tempered glass: Glass cabin wall enhance natural light diffusion and spatial openness, while stainless steel framing ensures durability, creating a sleek, modern aesthetic suited for residential spaces.

3. Stainless steel: The stainless steel cabin offers exceptional durability and corrosion resistance, ensuring long-lasting performance.

Safety system

Emergency stop

When meet emergency situation during the operation of the elevator, pressing the emergency stop button, the elevator will stop immediately.

Safety light curtain

The light curtain protects the safety of users through red infrared sensing.

Bottom safety sensor

The safety board can protect any people or obstacle, when any obstacle touch the bottom board, the lift will stop immediately.

Anti-free-falling brake

Even if the transmission chain was broken, the brake will be working, and the lift will stop at half way to keep the user’s safe.

Emergency rescue lock for the landing door

When an accident occurs and the landing door cannot be opened normally, the rescue lock outside the landing door can be opened to open the door.

UPS power

When meet power outage can achieve self rescue.

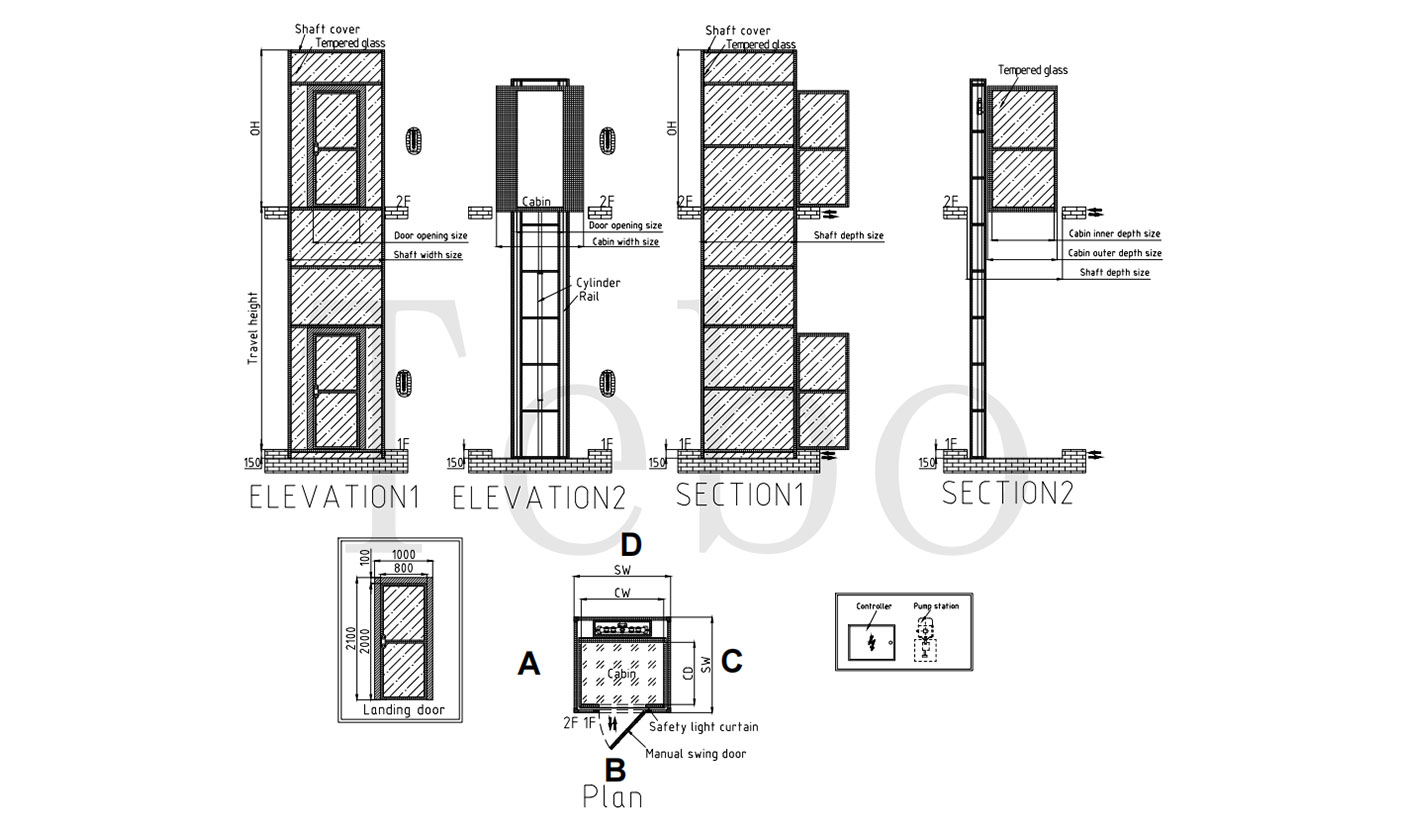

Drawing/sketches of worksite and lift

The worksite's parameters should be collected

Lifts' basic parameters

Lifts' drawing showing

Other services of us

Warranty

Tebo company provides a comprehensive 24-month warranty for all of its equipment, starting from the date of elevator handover. The warranty covers a wide range of essential components, including the entire transmission system, all hydraulic devices (with oil hoses and nipples), electrical parts and equipment (such as elevator LOP/COP and display systems), and specially finished accessories like door handles, hinges, and locks. This ensures that our customers can rely on our products for a long time.

Delivery time

At Tebo factory, each hydraulic lift platform is finished the production within 14 working days, with standard models frequently completed even earlier, often in under 10 days.

After sales work

We provide comprehensive 24-hour online after-sales support to ensure that our clients receive prompt assistance whenever they encounter difficulties during the installation or operation of their lifts. Whether clients reach out via phone or email, our dedicated after-sales team guarantees a swift response within 20 minutes. We assign specialized after-sales personnel to cater to the unique needs of various projects. Our after-sales services encompass assisting with installations through videos and manuals, troubleshooting in the event of lift malfunctions, reminding clients to perform regular maintenance on their lifts, and more.
