Application and chief introduction

Small cargo elevator is a vertical transportation equipment designed to solve the problem of cargo handling. It has the characteristics of compact size, moderate load capacity (several hundred kilograms to several tons), and easy installation. Its core function is to achieve rapid transportation of goods between floors through lifting platforms or cars, suitable for scenarios with limited space and frequent handling needs.

Basic feature and advantage

Flexbile size designing

1. Space adaptability: It can be installed in narrow spaces or non-traditional locations, such as corners and stairwells, without the need for load-bearing walls or separate shafts. ‌

2. Modular design: The structure is simple, can be freely combined and adjusted, and can flexibly respond to different needs. ‌

3. Customization options: Support non-standard customization to meet special size and functional requirements. ‌

4. Easy installation: No need for large-scale renovation, short installation cycle, suitable for decorated environments. ‌

5. Multi functional Applicable Scenarios: Suitable for various scenarios such as home, business, and industry.

Small shaft designnig

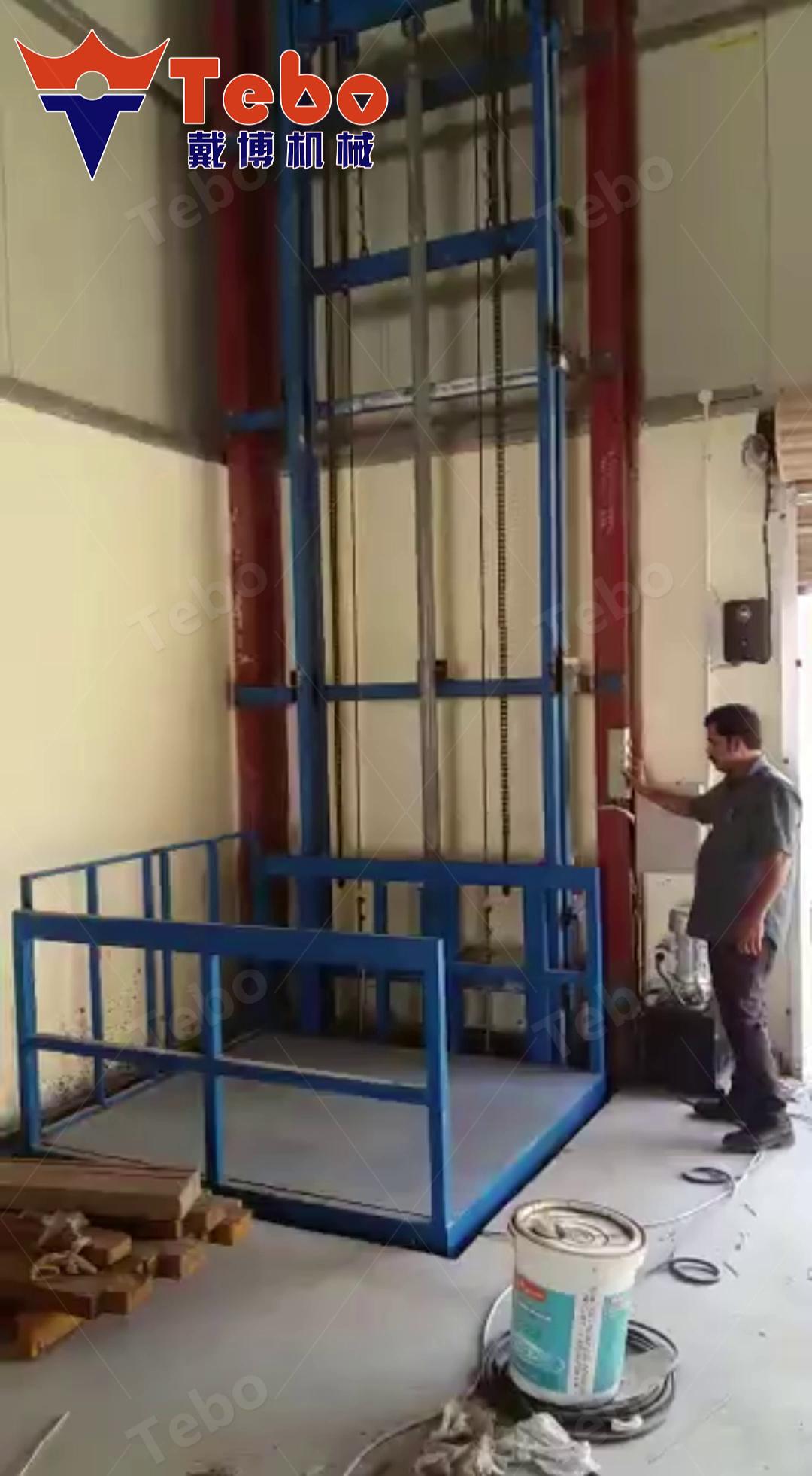

The small hydraulic cargo lift can be tailored to fit into extremely tight spaces, such as narrow corridor corners or confined basement areas. Even when the installation space is as limited as 1000*1000mm or smaller, designing and installing the lift remains straightforward. This flexibility simplifies the civil work preparations for clients or project agents, making it easier to accommodate the lift within the given constraints.

Pitless installation

Small hydraulic cargo lifts offer the advantage of needing minimal pit depth for installation. Sometimes, a civil pit as shallow as 200mm suffices, or no pit is required at all. This flexibility facilitates easy installation and use, setting hydraulic lifts apart from traditional traction lifts that often need deeper pits.

Overhead room height lower can be lower than traction elevator's requested

If customer want to install traction cargo elevator , the top floor's overhead room height need at least 4000mm or its need a machine room, but when you want to install hydraulic cargo elevator, the overhead room height only need 2.5m will be enough,   and its no need extra machine room;

Easy and low cost maintenance

Compared to traditional traction elevators, hydraulic cargo lifts offer a significant cost advantage, with selling prices that are often half or even lower. This makes them an excellent choice for customers seeking to meet their requirements cost-effectively. Furthermore, hydraulic lifts require less frequent and extensive maintenance compared to traction elevators, resulting in lower maintenance fees. Therefore, choosing a hydraulic cargo lift can provide both economic savings and operational convenience.

Production details explanation

Lift structure

We use China's national standard steel as the skeleton and surface material for our cargo lift, with each raw material certified by its supplier. The entire system has obtained CE certification after rigorous long-term testing of lab spare parts and the entire lift system.

Hydraulic system

Tebo hydraulic system of hydraulic cargo lifts serves as its core loading mechanism, utilizing China's national standard accessory products. Notably, 80% of these accessories meet military standards, enabling us to export our products to countries such as the USA, Japan, and those in Europe.

Electric system

Tebo hydraulic cargo lifts utilize a microcomputer-controlled electric system, ensuring ultra-smooth vertical movement with precision stability. All control, signal, and power cables feature industrial-grade plug-and-play connectors for rapid, error-proof installation. This modular design reduces wiring complexity, accelerates setup, and enhances durability, meeting stringent IEC safety standards for industrial automation.

Finishes parts

Our small hydraulic lift cabin offers a range of manual options and customized finishes to meet specific requirements. We offer two design types: Model A has a platform height of approximately 1100 millimeters and uses a durable steel mesh structure for strong performance. Type B is a fully enclosed steel mesh engine compartment with holes smaller than 30x30mm in diameter that comply with EU safety standards, ensuring the safety and protection of operators.

Typically, cargo lift landing doors can be designed in four distinct models:

A. The manual swing door, also known as the manual opening mechanical door, is fixed with hinges and top/bottom door axles, providing a robust and traditional solution.

B. Automatic shutter doors are highly popular in industrial elevator projects, offering smart and convenient operation for workers during daily shifts.

C. Fire doors are chosen by some clients to separate the hoistway's interior from the exterior space. The application of fire doors can fulfill specific clients' fire-proof requirements, ensuring enhanced safety and compliance with regulations.

Safety system

Emergency stop system

We designed an emergency button for the hydraulic cargo lift, ensuring that in the event of any unexpected issues, users can swiftly press it to halt the lift's operation abruptly, safeguarding the lift's structure, cargo, and operator's safety.

Additionally, we incorporated platform safety sensors using infrared light curtains. If any item loaded on the platform falls out of the platform door, the lift will immediately stop, ensuring the safety of both the lift and personnel.

The lift doors can be secured using door safety sensor limit switches, door-touching locks, or electromagnetic locks, meaning the lift can only operate when all doors are securely closed. During normal operation, if any door is opened, the lift will stop immediately, guaranteeing the safety of both the hydraulic cargo lift and its users.

Overload system

Tebo hydraulic lifts feature a crucial overloaded protecting system. This safeguard is designed to detect when the goods loaded surpass the standard capacity. As soon as this occurs, the lift promptly stops and emits a loud alarm. Resuming operation is only possible when the load is within the limit, protecting the equipment and preventing potential hazards.

Double transmission device protection

We have designed a lifting system that incorporates either 2 or 4 groups of steel ropes and 2 or 4 groups of steel heavy loading chains. The four groups of heavy loading chains are primarily responsible for supporting the entire platform structure and carrying heavy goods. Additionally, the four groups of steel ropes serve as safety transmission ropes, providing a crucial layer of protection. In the event of a failure in one of the steel heavy loading chains, the steel ropes will immediately activate as a safety device, effectively halting the descent of the platform and goods to prevent them from freely falling halfway through the lifting process. This design ensures that accidents are avoided, enhancing the overall safety and reliability of the lifting system..

Oil pressure overflow valve

Installed in the valve block of the pump station, the pressure overflow valve functions as a safety mechanism. When the lift is overloaded and the pump and mechanical device fail to operate smoothly during loading or unloading, the oil pressure increases excessively. This triggers the pump mechanical device to overflow, automatically diverting hydraulic oil from the pump valve to the oil tank. This protection feature of the pump station ensures safety in the event of oil pressure overload.

Drawing/sketches of worksite and lift

The worksite's parameters should be collected

Lifts' basic parameters

Lifts' drawing showing

Other services of us

Warranty

Tebo company provides a comprehensive 24month warranty for all its equipment, starting from the date of elevator handover. The warranty covers a wide range of essential components, including the entire transmission system, all hydraulic devices (with oil hoses and nipples), electrical parts and equipment (such as elevator LOP/COP and display systems), and specially finished accessories like door handles, hinges, and locks. This ensures that our customers can rely on our products for a long time.

Delivery time

At Tebo factory, each hydraulic lift platform is finished the production within 14 working days, with standard models frequently completed even earlier, often in under 10 days.

After sales work

We provide comprehensive 24/7 online after-sales support to ensure that our clients receive prompt assistance whenever they encounter difficulties during the installation or operation of their lifts. Whether clients reach out via phone or email, our dedicated after-sales team guarantees a swift response within 20 minutes. We assign specialized after-sales personnel to cater to the unique needs of various projects. Our after-sales services encompass assisting with installations through videos and manuals, troubleshooting in the event of lift malfunctions, reminding clients to perform regular maintenance on their lifts, and more.
