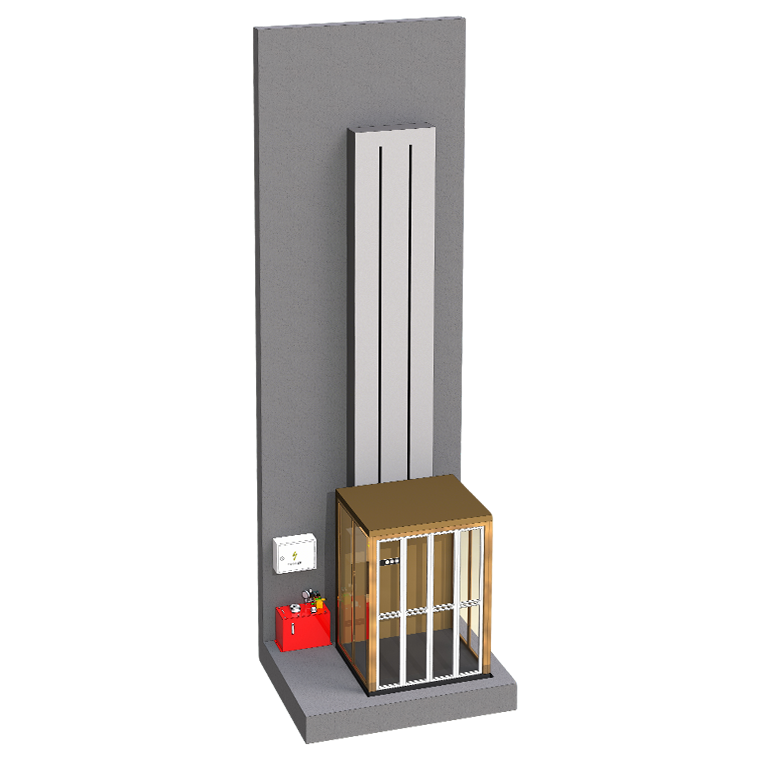

Vertical simple hydraulic home lift 350kg capacity

Application and chief introduction

Hydraulic home elevators are solutions commonly found in various residential settings. These elevators are often used in luxury homes and villas, enhancing property value and overall livability. Hydraulic elevators can also be featured in small apartment buildings, providing accessibility to tenants. In some cases, they are installed in private offices that occupy multiple levels, facilitating easy movement for staff and visitors. Overall, hydraulic home elevators cater to diverse needs and are suitable for any setting requiring efficient vertical transportation within a residential or low-rise commercial environment.

Basic feature and advantage

Easy and low cost maintenance

Simple hydraulic system and mechnical system can make sure the lift can run smoothly. Energy-efficient pumps and rare component replacements ensure cost-effective operation‌. Furthermore, hydraulic lifts require less frequent and extensive maintenance compared to traction elevators, resulting in lower maintenance fees. There are low maintenance cost and easy operation for hydraulic home lift, which can provide both economic savings and operational convenience.

Small shaft designnig

The hydraulic home lift can be tailored to fit into extremely tight spaces, only minimal structural modifications are required: no machine room is needed, only a load-bearing wall is needed. High space utilization rate up to 60%, which can reduce footprint greatly

Pitless installation

Hydraulic home lifts offer the advantage of providing pitless installation. The requirements for civil engineering structures are relatively low and can be installed without pits. Only one load-bearing wall is needed for installation.

Hydraulic home lift using is more adapt to the envirenment

Hydraulic lifts offer greater flexibility. They can be installed inside concrete hoistways, open area or staircase space, just need one or two strong fixing points. This adaptability ensures that hydraulic home elevators can be installed and operated safely in various environments, making them a more versatile option.

General advatage

Hydraulic home elevators offer numerous advantages that make them an appealing choice for residential spaces. Firstly, they provide good choices for individuals with mobility issues, enhancing convenience and quality of life. Their smooth and quiet operation ensures a comfortable ride without disturbing the household. Additionally, hydraulic elevators are typically more space-efficient than traditional elevators, requiring smaller shaft dimensions for installation. These elevators also have lower installation costs compared to other types, while still delivering excellent performance and reliability. Lastly, they require less maintenance than traction elevators, making them a cost-effective long-term investment for homeowners and families.

Production details explanation

Lift structure

We use China's national standard steel as the skeleton and surface material for our cargo lift, with each raw material certified by its supplier. The entire system has obtained CE certification after rigorous long-term testing of lab spare parts and the entire lift system.

Hydraulic system

Tebo hydraulic system of hydraulic cargo lifts serves as its core loading mechanism, utilizing China's national standard accessory products. Notably, 80% of these accessories meet military standards, enabling us to export our products to countries such as the USA, Japan, and those in Europe.

Electric system

The intelligent electronic control system of the hydraulic home lift   has a user-friendly touch interface, real-time safety monitoring, such as overload alarm, emergency stop, and energy-saving operation. Programmable settings can adapt to home layout. Low voltage design ensures safety .

Finishes parts

The exterior decorations of hydraulic home elevator are made of high-strength stainless steel, tempered glass,providing hairline stainless steel or mirror stainless steel, corrosion-resistant and easy to clean. Modular design suitable for various household styles, with optional LED lighting. Fully enclosed structure waterproof and dustproof, suitable for indoor and outdoor use, supports personalized pattern and color customization

Landing doors

There are four types of landing doors for you to choose from:

1.Manual Swing Door: Generally, it is composed of a single-panel door with an aluminum frame and glass. It can open either on the right - hand side or the left - hand side.

2.Automatic Swing Door: This type of door operates automatically, providing convenient access. It swings open in a similar way to the manual swing door but without the need for manual operation.

3.Automatic Swing Door with Center Opening: This door automatically swings open from the center. With beautiful appearance and unique styles, facilitating the entry and exit of passengers or goods.

4. Automatic sliding door.

This kind of door can be made into pure stainless steel or stainless steel with glass material. You can also choose the center opening or side opening style based on different door opening size.

Landing doors pictures

Safety system

Door safety sensors

Tebo brand hydraulic cargo lifts utilize door safety sensors to guarantee safety. This means that each set of landing doors, cabin door is equipped with at least one door safety limit switch. The electrical diagram is designed in the form of a safety loop for the door sensors, ensuring that all doors must be securely closed for the lift to function. In the event that any door is forcibly opened, the lift will immediately stop. The lift can only operate normally when all cabin doors and landing doors of the cargo elevator are fully closed and securely latched.

Overload system

Tebo hydraulic lifts feature a crucial overloaded protecting system. This safeguard is designed to detect when the goods loaded surpass the standard capacity. As soon as this occurs, the lift promptly stops and emits a loud alarm. Resuming operation is only possible when the load is within the limit, protecting the equipment and preventing potential hazards.

Light Curtain

The infrared safety light curtain of the elevator uses a series of infrared rays to detect obstacles at the entrance. If someone reaching out and touching the light curtain, the elevator will immediately stop to prevent danger and accidental injury to people, ensuring reliable protection for users, pets, or objects during the operation.

UPS power

In the event of a power outage,the home elevator can descend through UPS power.Then self rescue can be achieved easily.

Manual down valveWhen elevator meets failure and can’t down to the ground floor, open the manual down valve on the pump station, the oil will flow back to the oil tank, and then the elevator will descend to the ground floor.

Emergency stop system

When meet emergency situation during the operation of the elevator, pressing the emergency stop button, the elevator will stop immediately.

Drawing/sketches of worksite and lift

The worksite's parameters should be collected

Lifts' basic parameters

Lifts' drawing showing

Other services of us

Warranty

Tebo company provides a comprehensive 24month warranty for all its equipment, starting from the date of elevator handover. The warranty covers a wide range of essential components, including the entire transmission system, all hydraulic devices (with oil hoses and nipples), electrical parts and equipment (such as elevator LOP/COP and display systems), and specially finished accessories like door handles, hinges, and locks. This ensures that our customers can rely on our products for a long time.

Delivery time

At Tebo factory, each hydraulic lift platform is finished the production within 14 working days, with standard models typically completed earlier, usually in less than 10 days.

After sales work

We offer comprehensive 24/7 online after-sales support to ensure that our clients receive prompt assistance whenever they encounter difficulties during the installation or operation of their lifts. Whether clients reach out via phone or email, our dedicated after-sales team guarantees a swift response within 20 minutes. We assign specialized after-sales personnel to cater to the unique needs of various projects. Our after-sales services encompass assisting with installations through videos and manuals, troubleshooting in the event of lift malfunctions, reminding clients to perform regular maintenance on their lifts, and more.
