Types of Home Elevators

The decision to install a home elevator is a significant investment in a property's accessibility, convenience, and future value. Far from being a monolithic category, the world of home elevators encompasses diverse technologies and designs, each suited to different architectural styles, spatial constraints, and homeowner needs. Understanding the various types of home lift systems available is crucial for making an informed choice that perfectly integrates with your living space and lifestyle.

Hydraulic home elevators are among the most common and well-established types in residential settings. They operate using a hydraulic pump that moves a piston within a cylinder, lifting and lowering the elevator car. Known for their smooth and reliable ride, hydraulic systems are a popular choice for homeowners seeking robust performance.

1.Types of Hydraulic Elevators

• Hole-less Hydraulic

In this configuration, the hydraulic ram (piston) is located beside the elevator car, running vertically. This type does not require a hole to be drilled into the ground beneath the elevator pit, making installation simpler in certain scenarios, especially where drilling is difficult or impossible.

• Holed (In-ground) Hydraulic

This traditional setup involves drilling a hole into the ground beneath the elevator pit, where the hydraulic ram extends into during descent. This design typically allows for a more compact shaft enclosure footprint above ground.

2.Max Speed Per Minute

For residential applications, hydraulic home elevators typically operate at a maximum speed of 30-50 feet per minute (FPM). This speed ensures a comfortable and gentle ride, suitable for navigating between two to four floors.

3.Used For

Hydraulic home elevators are widely used for:

• Reliable and Smooth Operation

Their fluid-based system provides a consistent and quiet ride.

• Medium to Heavy Loads

Capable of handling significant weight, making them suitable for transporting multiple people, wheelchairs, and bulky items like furniture.

• Moderate Number of Stops

Ideal for homes with 2 to 4 floors.

• New Construction and Major Renovations

Their requirements for a pit and sometimes a machine room make them well-suited for planned installations during building or extensive remodeling.

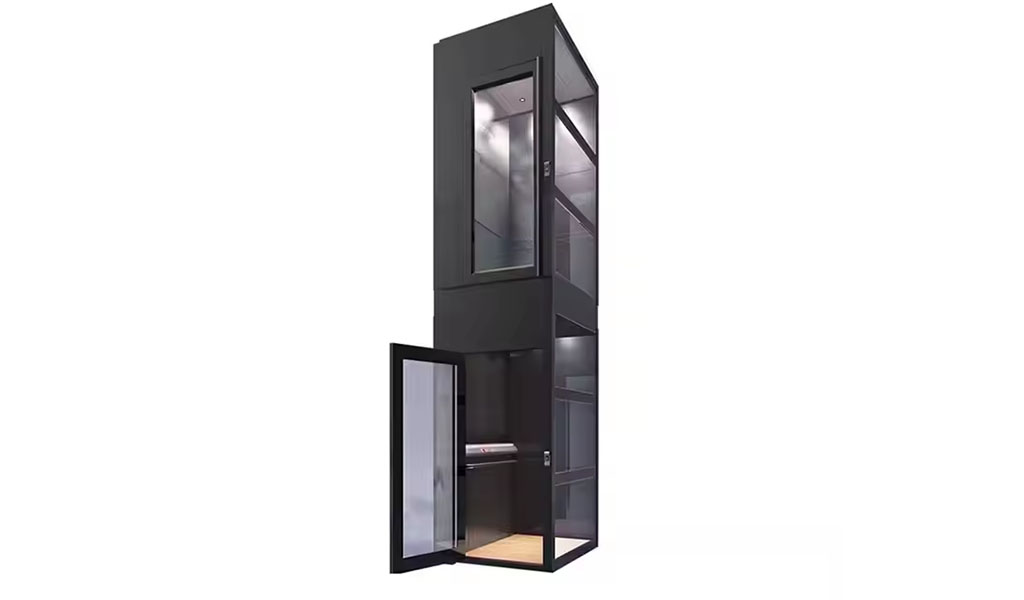

Traction home elevators operate using a system of steel ropes or belts passing over a sheave (pulley) connected to a motor. A counterweight system balances the elevator car, making them highly efficient. These systems provide a very smooth and quiet ride, often mimicking the experience of commercial elevators.

1.Types of Traction Elevators

• Geared Traction

The motor drives a gear that turns the sheave, lifting the ropes. These typically require a dedicated machine room, often located directly above the shaft enclosure.

• Gearless Traction

The motor directly drives the sheave, eliminating the need for a gearbox. These are more energy-efficient and quieter. Gearless traction systems are most commonly found in Machine Room-Less (MRL) configurations for home elevators, making them a popular choice for space-conscious installations.

2.Max Speed Per Minute

Traction home elevators generally offer faster speeds than hydraulic systems, typically ranging from 50-100 feet per minute (FPM). This makes them suitable for homes with more stories where quicker travel times are desired.

3.Used For

Traction home elevators are ideal for:

• Energy Efficiency

Especially gearless MRL models, due to the counterweight system.

• Smooth and Quiet Ride

Providing a premium user experience.

• Multiple Stops

Capable of serving more floors than hydraulic systems, making them suitable for taller residential buildings.

• Space Optimization (MRL versions)

Eliminating the need for a separate machine room, which is a significant advantage in residential settings.

Vacuum home elevators, also known as pneumatic vacuum elevators (PVEs), represent a revolutionary approach to vertical transportation. Their unique design consists of a transparent cylindrical shaft and a self-contained cabin that moves using air pressure.

1.Types of Vacuum Elevators

Vacuum home elevators primarily come in various diameters (and thus capacities) to suit different needs:

• Single-Person Units

The most compact versions, ideal for individual use.

• Two-Person Units

Slightly wider, accommodating two individuals.

• Wheelchair Accessible Units

Larger diameters designed to comfortably fit a wheelchair and attendant.

2.Max Speed Per Minute

Vacuum home elevators operate at a slower pace compared to other types, typically ranging from 20-30 feet per minute (FPM). This gentle speed ensures a very smooth and comfortable ride.

3.Used For

Vacuum home elevators are exceptionally well-suited for:

• Retrofitting Existing Homes

Their minimal footprint and lack of a pit or machine room make them ideal for installation in homes where traditional elevators would require extensive and costly structural work.

• Space-Saving Solution

They can often be placed in tight corners, against walls, or even freestanding in open areas.

• Modern Aesthetic

Their panoramic glass design offers unobstructed views and a contemporary, often futuristic, look.

• Quick Installation

Installation times can be significantly shorter than other elevator types.

The term "pitless elevator" refers to a design configuration rather than a specific drive system. A pitless home lift does not require a deep excavation (pit) at the lowest landing. This is a significant advantage for installations where digging a pit is impractical, costly, or structurally challenging, such as in existing homes with slab foundations, high water tables, or basements.

1.Types of Pitless Elevators

Several drive systems can be engineered to be pitless or require only a very shallow pit (e.g., 2-6 inches):

• Pneumatic (Vacuum) Elevators

Inherently pitless by design, as they don't use traditional cables or hydraulics that require underground components.

• Certain Winding Drum/Cable Elevators

Some compact models are designed to operate with a minimal or no pit, often incorporating ramps at the lower landing.

• Some Machine Room-Less (MRL) Traction Elevators

Specific MRL designs can be adapted to require minimal pit depth.

2.Max Speed Per Minute

The maximum speed of a pitless home elevator varies greatly depending on the underlying drive technology. A pitless vacuum elevator will typically be slower (20-30 FPM), while a pitless MRL traction elevator could be faster (50-100 FPM).

3.Used For

Pitless home elevators are primarily used for:

• Existing Home Retrofits

Ideal for properties where digging a deep pit is not feasible or desired.

• Basement Access

Providing vertical access to basements without requiring extensive concrete work.

• Cost Savings

Reducing civil work and installation complexity.

• Faster Installation

Less excavation generally means quicker installation times.

MRL stands for Machine Room-Less. An MRL home elevator is characterized by having all of its primary operating equipment (motor, control panel, etc.) located within the shaft enclosure itself, typically at the top, or directly integrated into the elevator shaft. This eliminates the need for a separate, dedicated machine room, which is a significant advantage for space-conscious homeowners.

1.Types of MRL Elevators

While MRLs are most commonly associated with traction elevators, compact MRL hydraulic systems also exist:

• MRL Traction Elevators

This is the most prevalent type of MRL home lift. The gearless motor is often mounted directly to the car's guide rails or overhead structure within the shaft.

• Compact MRL Hydraulic Elevators

Some hydraulic systems are designed with very compact pump units and controls that can be housed in a small cabinet adjacent to the shaft enclosure or even within the pit, effectively making them machine room-less.

2.Max Speed Per Minute

The maximum speed of an MRL home elevator depends on its underlying drive technology. MRL traction elevators can range from 50-100 FPM, while MRL hydraulic options might be in the 30-50 FPM range.

3.Used For

MRL home elevators are widely adopted for:

• Space Optimization

Their primary advantage is saving valuable floor space by eliminating the need for a machine room, making them an excellent choice for any home lift application where space is at a premium.

• Aesthetic Integration

Allows for more flexible architectural design as there's no machine room to accommodate.

• Quieter Operation

Often quieter than traditional systems, as the machinery is contained within the shaft enclosure.

• Energy Efficiency

MRL traction systems, in particular, are known for their energy efficiency.

Understanding the various types of home elevators—Hydraulic, Traction, Vacuum, Pitless, and MRL—is crucial. Each home lift offers unique benefits in speed, space, and application. For personalized advice on the best home elevator for your needs, contact us today.Phone/Whatsapp: +86 18954171380 Email: info@tebolift.com

• What are the Types of Home Elevators?

The main types of home elevators include Hydraulic, Traction (cable), Pneumatic (Vacuum), and specialized configurations like Pitless and Machine Room-Less (MRL) home lift systems.

• Is Small Elevators for Homes Safe?

Yes, all reputable home elevators, including small models, are designed with numerous safety features like emergency stops, door sensors, and battery backups, making them very safe when properly installed and maintained.

• Is Home Elevators worth buying?

Yes, home elevators are often worth buying. They enhance accessibility and independence, increase property value, offer significant convenience, and allow homeowners to comfortably "age in place" in their beloved residence.
