How to install a house elevator

Laying the Foundation Guide Rails Installation

Preparing the Hoistway Structure

The first critical step in installing residential elevators involves preparing the hoistway the vertical shaft where your home lift will operate.

This structural work requires careful planning and execution:

Structural Assessment: A professional engineer must evaluate your home's framework to ensure it can support elevators for homes. This includes checking floor joists, wall strength, and foundation requirements.

Space Requirements: Most home lifts require a minimum 5'x5' footprint, though compact models for tight spaces are available.Consider door swing clearance and landing space at each level.

Fireproofing and Soundproofing: Building codes often mandate fire-resistant drywall around home elevators. Sound insulation prevents operational noise from disturbing household activities.

Installing Guide Rails with Precision

Guide rails form the backbone of your elevator for home, ensuring smooth vertical movement:

Laser Alignment: Professionals use laser tools to guarantee perfect vertical alignment (plumb) for in home elevator installation. Even minor deviations can cause premature wear.

Bracket Installation: Heavy-duty brackets anchor rails to structural supports every 4-6 feet. Concrete anchors or welded steel plates provide maximum stability for residential home elevators.

Final Adjustments: After installation, technicians verify parallel alignment, proper spacing, and smooth rail surfaces to ensure decades of trouble-free operation.

Assembling Hoistway Components

Drive System Selection and Installation

Modern lifts for homes offer two main drive system options,While both hydraulic and traction elevators for homes have their merits, our hydraulic systems provide distinct advantages,Our specialization in hydraulic home lifts ensures your installation will be performed to the highest standards, with particular attention to.

Hydraulic Systems:Ideal for low-rise applications (2-3 floors);Require hydraulic pump and fluid reservoir;Provide smooth, quiet operation.

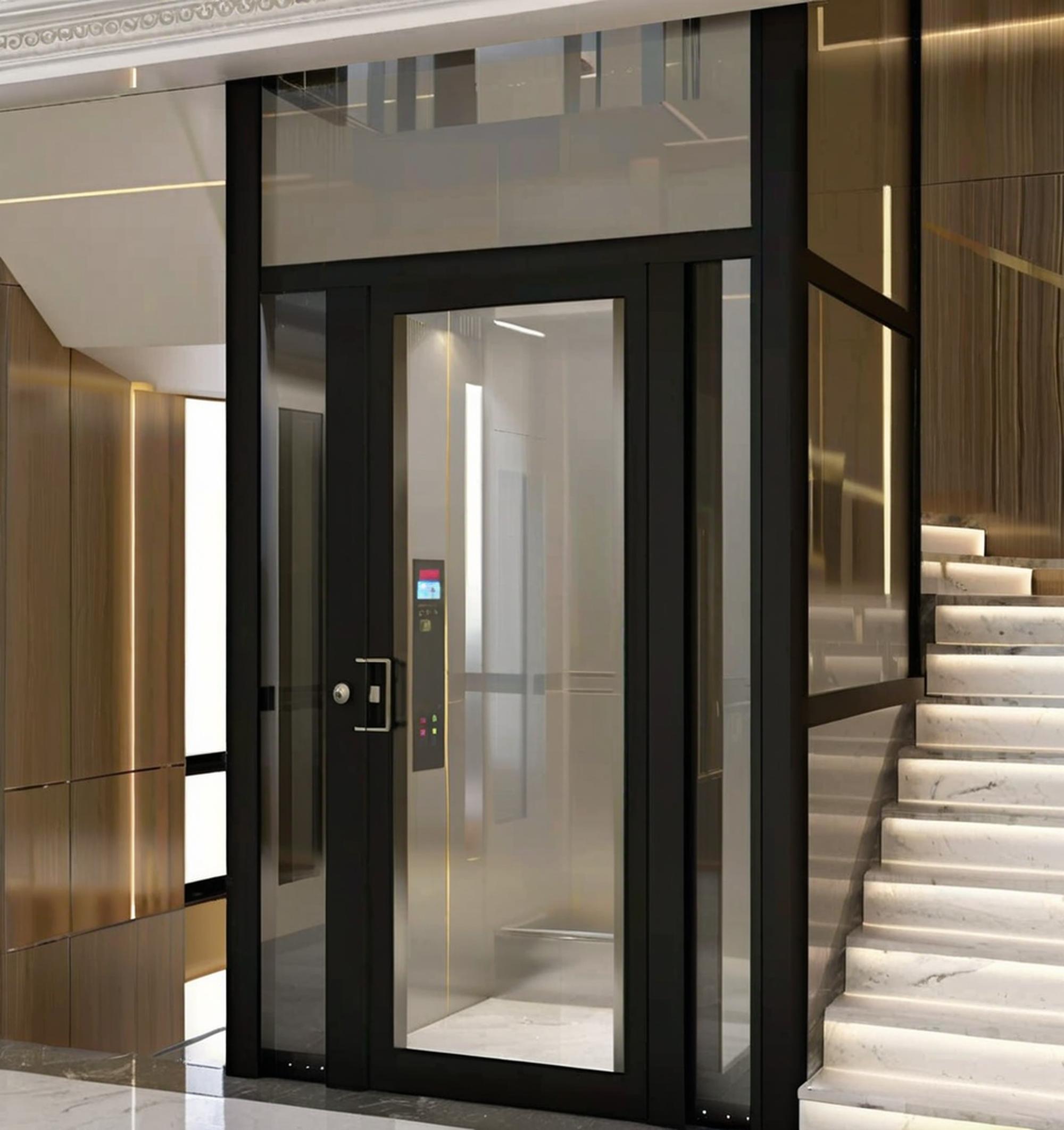

Hydraulic lift

Traction Systems:Use counterweights for energy efficiency;Require machine room or overhead space;Best for taller installations;Minimal structural modifications;Fast installation times.

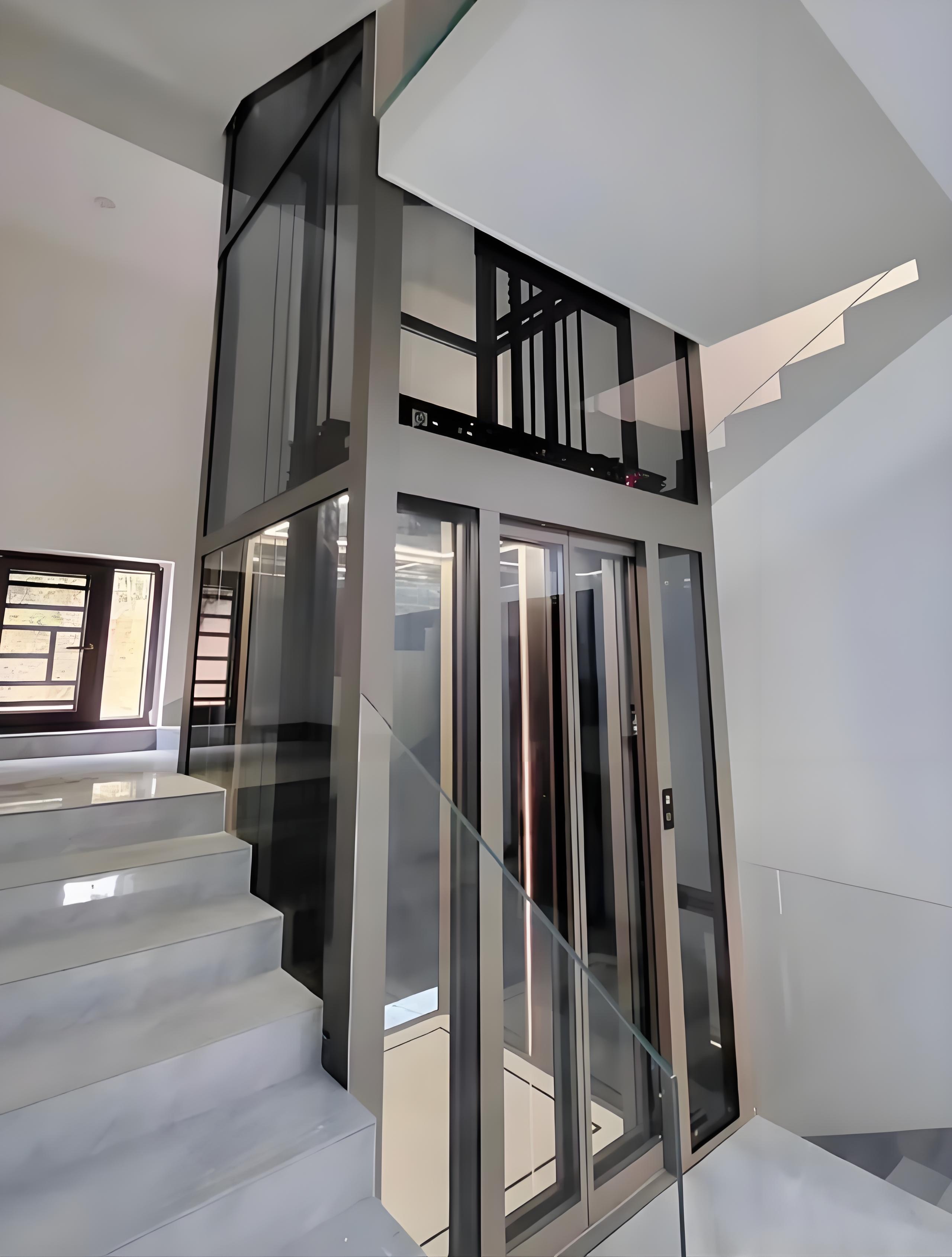

Traction lift

For homeowners seeking the most reliable, cost-effective vertical transportation solution, our hydraulic residential home elevators represent the smart choice - combining proven technology with modern innovations for superior performance and longevity.The installation tutorial in this article mainly revolves around hydraulic elevators.

Comprehensive Safety Systems

All quality home elevator systems incorporate multiple safety redundancies:

Emergency Brakes: Mechanical and electromagnetic systems activate during overspeed conditions

Door Protection: Infrared sensors and mechanical interlocks prevent operation with open doors

Backup Power: Battery systems ensure safe lowering during power outages.

Elevator Car Installation

Car Frame Assembly and Mounting

The visible centerpiece of your home elevator requires careful installation:

Structural Frame: Heavy-duty steel or aluminum construction supports up to 1,000 lbs capacity

Roller Guides: Precision bearings ensure smooth travel along guide rails

Platform Leveling: Micro-adjustments guarantee perfect alignment at each floor.

Door System Options

Choose between several door configurations for your residential home elevators:

Automatic Doors:Automatic swing door;Automatic swing door(centre opening).

Multiple style options (sliding door、side opening).

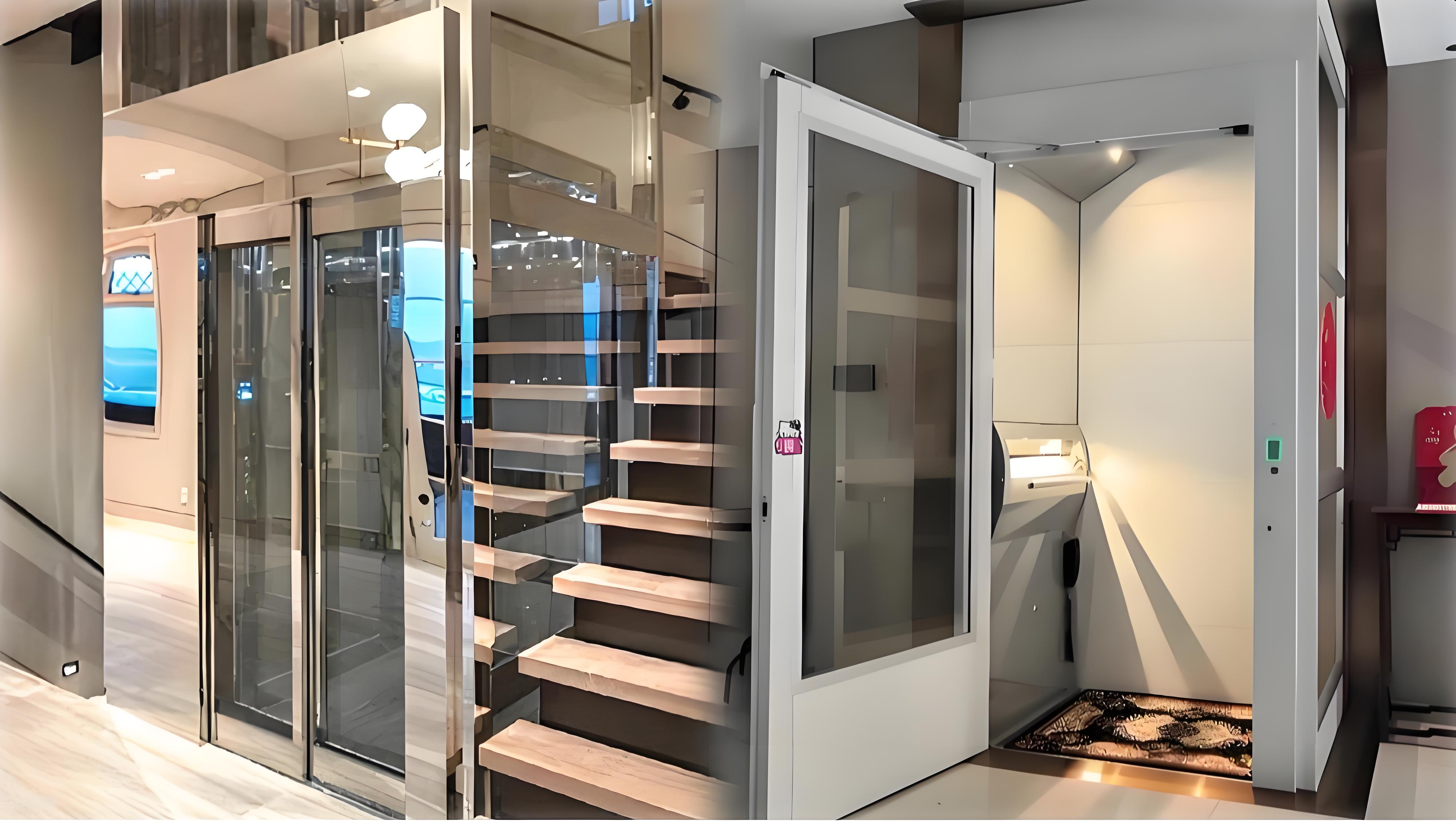

Automatic swing door(centre opening)                                                        Automatic swing door

Manual Doors:Cost-effective alternative;Space-saving designs;Positive locking mechanisms.

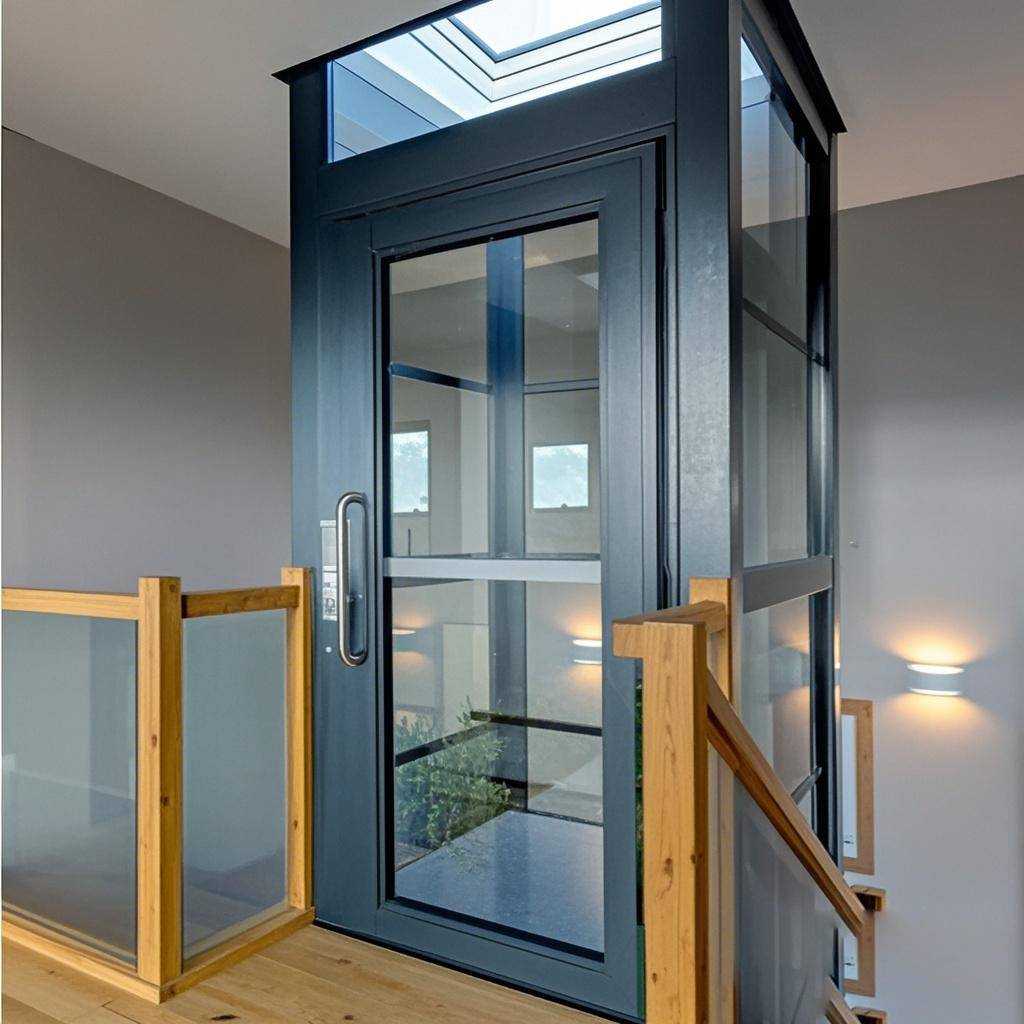

Manual swing door

Electrical System Installation

Power Requirements and Wiring

Professional in home elevator installation includes:Dedicated 220V circuit (standard for most models);Emergency backup power connection;Proper grounding and surge protection.

220V Single-Phase vs. Three-Phase: Most residential hydraulic elevators operate on standard 220V single-phase power, eliminating the need for expensive three-phase upgrades.

Lower Power Consumption: Hydraulic pumps only draw significant power during movement, unlike continuous-duty traction motors, reducing long-term energy costs.

Backup Power Options: Since hydraulic systems don’t rely on overhead machinery, battery backup units can be installed at ground level for emergency lowering.

Minimal Overhead Wiring: Unlike traction elevators for homes, which need cabling to a machine room, hydraulic systems centralize wiring near the pump location.

Pre-Terminated Harnesses: Our home elevator use plug-and-play wiring kits to reduce installation time and ensure error-free connections.

Control System Setup

Modern home lifts feature sophisticated controls:Touchscreen operation panels;Programmable floor stops;Smart home integration capabilities;Remote monitoring options.

Manual Bypass Valve: Allows emergency lowering via hand pump if electrical power fails.

Touchless Call Buttons: Hygienic, low-voltage controls ideal for residential home elevators.

Smartphone Integration: Remote monitoring of fluid levels, usage data, and maintenance alerts.

LED Position Indicators: Energy-efficient displays showing elevator location.

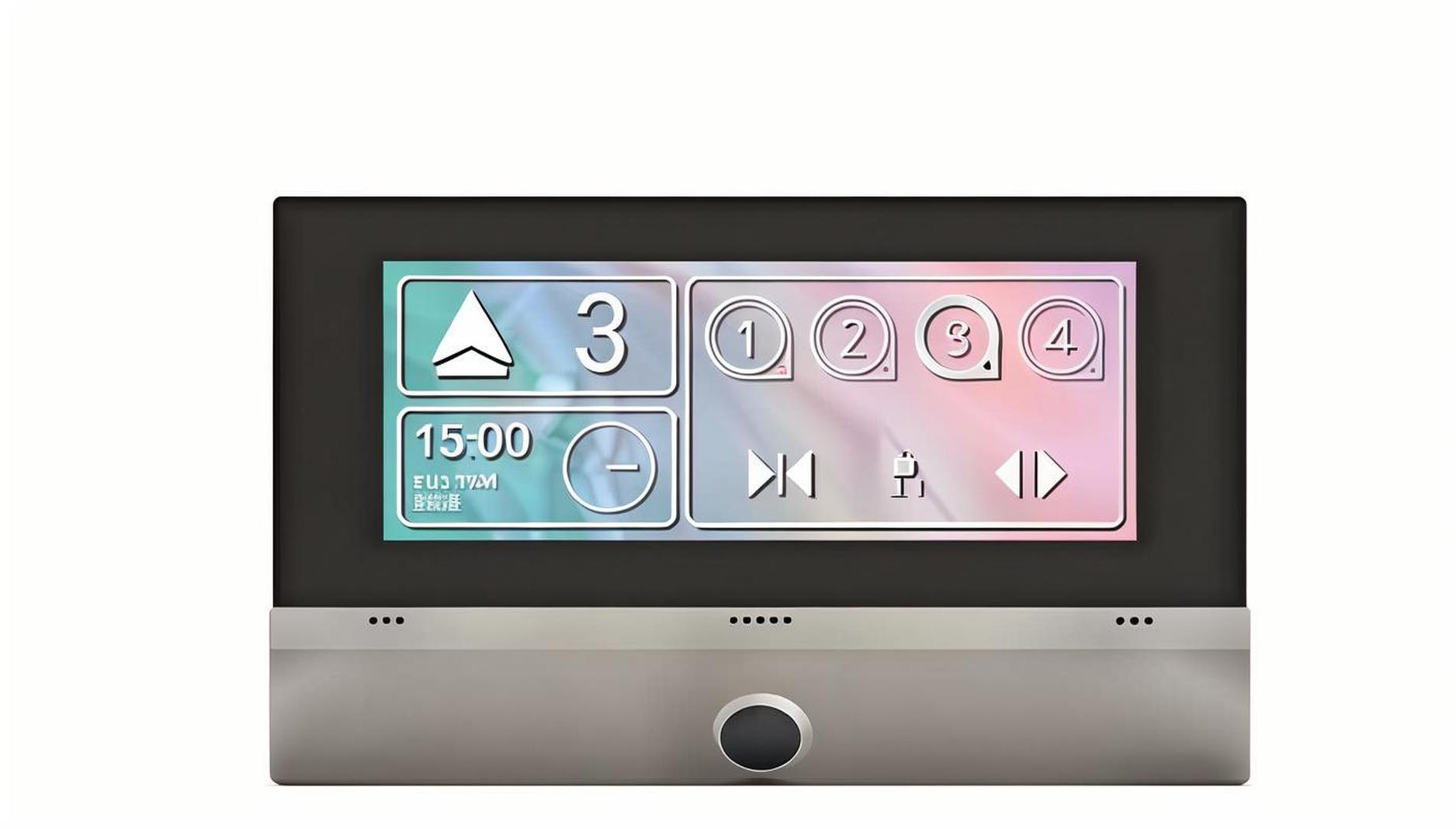

Touchscreen operation panels

Inspection and Certification

Performance Testing

Before use, all elevators for homes undergo rigorous testing:No-load speed verification;Load testing to 125% capacity;Emergency stop performance;Door safety mechanism checks;Verifies pump reaches optimal operating PSI (typically 500-800 PSI);Ensures smooth acceleration/deceleration without pressure spikes;Confirms proper relief valve function;Confirms cooling system efficiency;tart/Stop Smoothness Evaluation;Measures jerk (rate of acceleration change);Must meet ADA-compliant comfort standards;Verifies cushioning valve performance.;Leveling Accuracy Test.

Final Inspection Process

Certification of your elevator for home requires:Third-party inspection (often state-mandated);Documentation review (manuals, warranties);Final approval from local building department.

Maintenance for Longevity

Routine Maintenance Schedule

Protect your investment in residential home elevators with:Monthly visual inspections;Quarterly lubrication of moving parts;Annual professional servicing. Warranty Considerations

Understanding your elevate home warranty coverage:Typical coverage periods ;What's included (parts vs labor);Extended warranty options.

Conclusion

Installing a home elevator l represents a significant investment in your property's accessibility and value. By following professional installation standards and maintaining your system properly, your residential elevator will provide safe, reliable service for decades. Always work with certified elevator professionals for installation and maintenance to ensure optimal performance and safety.
